Based on high-resolution thermographic cameras and specialized software, ProTIR® provides real-time radiometric images, enabling highly accurate temperature measurement inside reheating furnaces, rotary kilns, coolers, incinerators, and boilers across industries such as steel, minerals, power generation, and processing.


ProTIR® is also ideal for glass melting furnaces, hydrogen reformer furnaces, and cracker tube furnaces, allowing for process control optimization, energy savings, and extended lifespan of furnaces and reformed tubes.


With an optical angle of 86º for greater inspection detail, our system provides accurate real-time temperature information (from any of the 367,000 measurement points), along with a wide field of view through just a narrow opening in the wall.

thermal imaging camera
thermal imaging camera
thermal imaging camera
thermal imaging camera
thermal imaging camera
thermal imaging camera
thermal imaging camera
retractil_protir3
ProTIR_Burner2_v3
ProTIR_ Sistema retractil
billet
protir_entrada_horno_800x600
protir_sonda
ProTIR_Sistema de fijación_horiz
thermal imaging camera
thermal imaging camera

The system is protected by a robust stainless steel enclosure, incorporating a high-performance water-cooling system. The ProTIR® system withstands temperatures up to 2,200ºC (3,992ºF). Additionally, our thermographic measurement solution provides a wide temperature measurement range from 450ºC to 1,800ºC (842ºF to 3,272ºF).

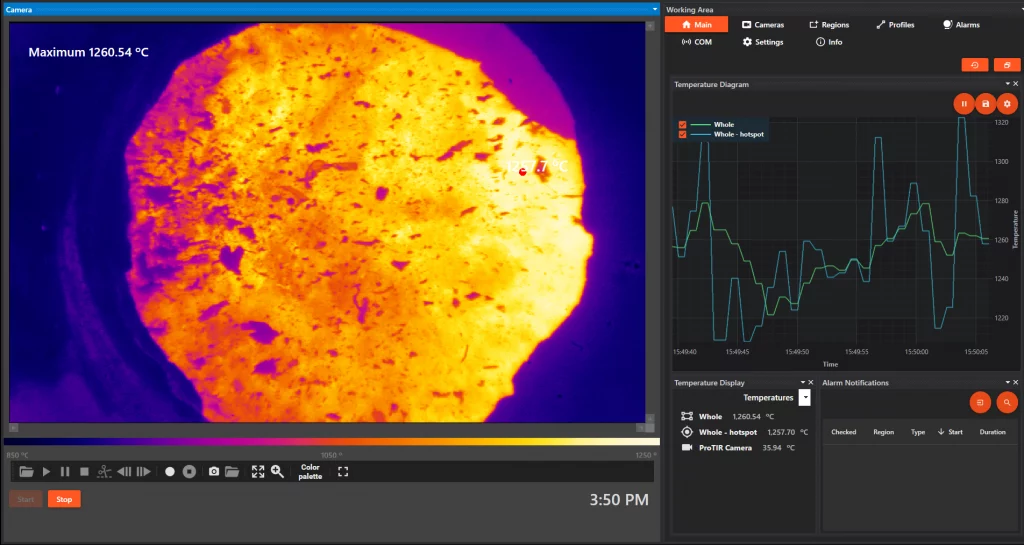

The ProTIR® software provides precise data analysis
with automated alarm outputs and 24/7 monitoring control, allowing immediate alerts to notify the user of any issues from the control room.

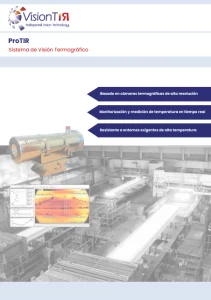

Download ProTIR® Brochure

thermal imaging camera
thermal imaging camera

ProTIR® : Two mounting options for the same solution

thermal imaging camera

Auto-retraction system

thermal imaging camera

Fixed System

Benefits

  • High-definition thermal images
  • Radiometric images with precise information
  • Flame shape optimization
  • Process control optimization
thermal imaging camera
  • Energy efficiency savings
  • Long-term reliability
  • Minimal maintenance
  • 2-year warranty

Characteristics

  • Fully-featured software for precise data analysis.
  • Configuration of different areas and temperature trends.
  • Automated alarm outputs for efficient control.
  • Continuous 24/7 monitoring for instant alerts.
  • Real-time inspection with the highest resolution.
  • 86º field of view for maximum detail.
  • 764*480 pixel resolution, providing 367,000 data points.
  • Overheating protection mechanisms available: fixed, wall-mounted, and automatic retraction system.
  • Long-term trouble-free operation thanks to thermal protection solutions.
  • Different enclosure size ranges to adapt to various needs.
  • Various mounting options to provide the best solution for each installation.
thermal imaging camera

Retractable ProTIR® attached to a furnace

thermal imaging camera

Fixed ProTIR® system used in a furnace

Software

  • Unlimited Regions
    • Allows defining as many regions as needed.
    • Facilitates the segmentation of areas monitored by thermographic cameras.
    • Automatically identifies hot or cold spots in each region.
  • Unlimited Alarms
    • Ability to define different alarm and pre-alarm rules.
    • Multiple alarm rules can be assigned to the same region.
    • Versatile configuration adaptable to any scenario.
  • Database
    • Stores all recorded alarm and pre-alarm events.
    • Allows data queries and filtering.
    • Generates detailed reports for system analysis and control.
thermal imaging camera
thermal imaging camera
  • Watch-Dog
    • Advanced proprietary surveillance software system.
    • Continuously monitors system operation 24/7.
    • Ensures that each process runs correctly.
    • Prevents accidental shutdowns, guaranteeing that the ProTIR software is always running.
  • Notifications
    • Generation of comprehensive alarm reports.
    • Email notifications.
    • Reports include images and event data.

SCADA Protir

The system includes a SCADA through which the status of the system is monitored from the Control Room, as well as allowing remote movement of the thermographic camera.

thermal imaging camera
  • SCADA Integration
    • ProTIR is a system developed for industrial environments.
    • Integration between systems is crucial in these types of environments.
  • Communication Protocols
    • Supports OPC-DA / OPC-UA protocol.
    • Facilitates integration with industrial plant control systems.
  • Applications
    • Temperature values can be considered in real time.
    • Allows for improved control of production processes.

Specifications

  • Temperature range: from +450ºC to +1,800ºC (+842ºF to 3,272ºF)
  • Operating temperature: up to 2,200ºC (3,992ºF)
  • Image frequency: 80 Hz
  • Spectral range: 0.92 – 1.1 µm
  • Resolution: 764 × 480 pixels
  • Field of view: 86º (diagonal)
  • Axial and angular view
  • Data output: Ethernet or fiber optic
  • Enclosure length: 350, 700, or 1200 mm (13.8″, 27.6″, or 47.2″)
  • Enclosure diameter: 89 mm or 101.6 mm (3.5″ or 4″)
  • Sealing: IP66
  • Power supply: 24 VDC
  • Made of stainless steel AISI 316L
  • Standard accessories: control cabinet, software, cables, power supply
  • Durability: high temperature resistance and long-term reliability thanks to its water and air cooling system
  • Different available viewing angles: axial and angular (30º, 45º, 60º, and 90º)
